If you've ever purchased heat transfer vinyl for shirts, you've probably seen the two letters everywhere: PU and PVC HTV Vinyl.

Most beginners assume there's no difference. That's not true. Choosing the wrong material can lead to drastically different patterns; some designs are durable, while others may crack after a few washes.

As a heat transfer vinyl wholesale supplier for over 10 years, one of the most frequently asked questions is: "Should I choose PU or PVC HTV vinyl roll?"

In this guide, we at the heat transfer factory will provide a comprehensive overview of everything you need to know about PU and PVC heat transfer vinyl. You'll learn about the characteristics of each material, comparisons across 9 key dimensions, real-world test data, and—most importantly—which material is best suited for your specific project.

Disclaimer: Koala® Factory manufactures high-quality iron on PU heat transfer vinyl. This guide is based on materials science, industry data, and real-world testing. All comparisons are factual and repeatable.

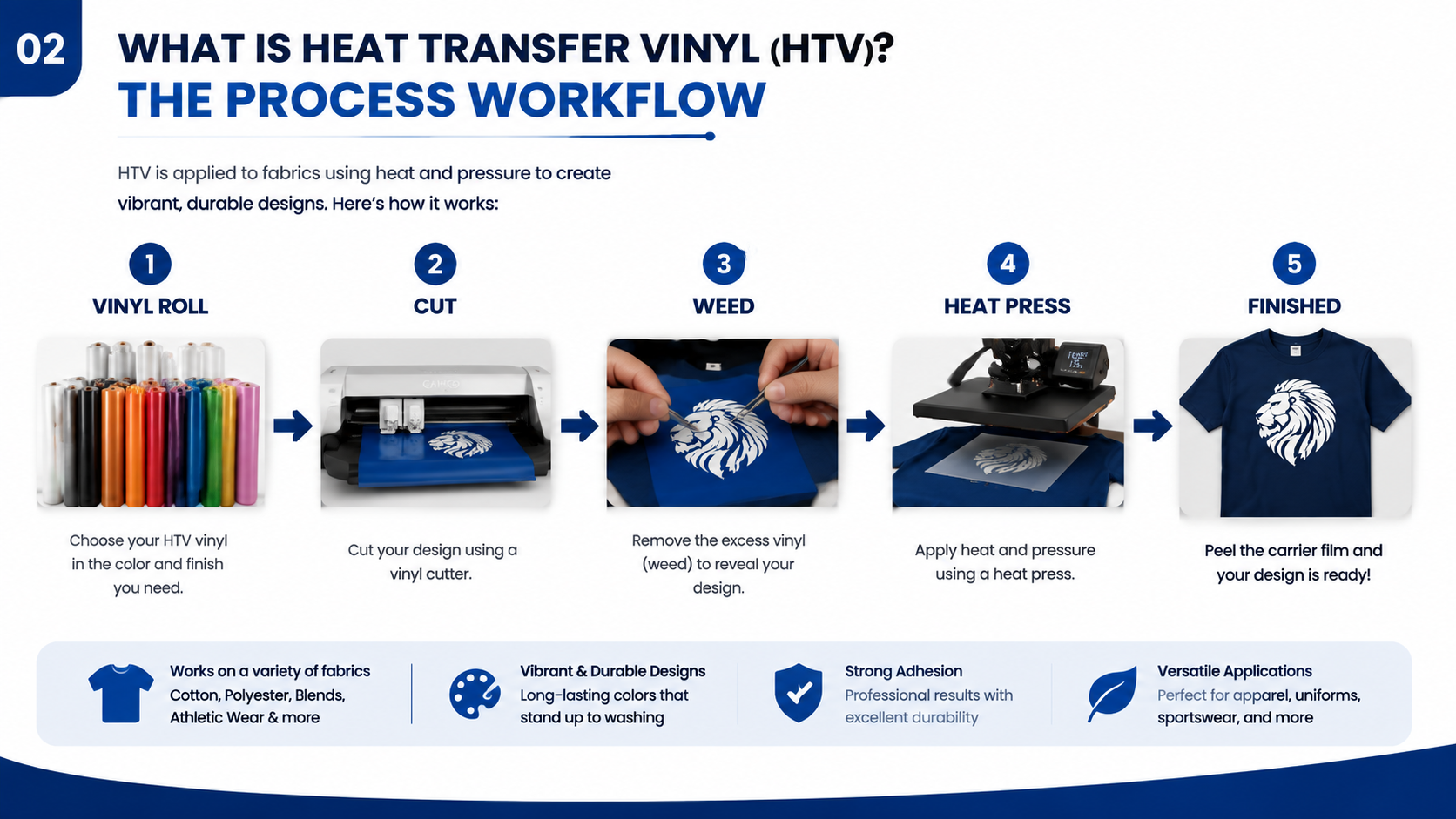

What is Heat Transfer Vinyl for Shirt (HTV)?

Heat Transfer Vinyl is a material with a polyurethane (PU) or polyvinyl chloride (PVC) base and a heat-activated adhesive coated on the back. The pattern is cut using a lettering machine (such as Cricut or Silhouette), excess material is removed, and then it is transferred onto the fabric using a heat press.

Heat Transfer T-Shirt Vinyl is one of the most popular methods in garment customization because it works with cotton, blends, and even some synthetic fabrics—something sublimation printing cannot achieve.

Global Heat Transfer Vinyl Market

The global HTV Heat Transfer Vinyl market is growing at a CAGR of 6.3% and is projected to reach $2.8 billion by 2033. PU Heat Transfer Vinyl dominates this market, expected to hold approximately 54% market share by 2026, thanks to its excellent stretchability, washability, and compatibility with a wide range of textile substrates.

Why this comparison is crucial

Choosing between PU and PVC is not just a matter of price. It also concerns:

• Comfort – How does it feel against the skin?
• Durability – How long is the designed lifespan?
• Application success rate – Will this material reliably fit your equipment?
• Customer satisfaction – Will your customers be satisfied with the final product?

What is pu vinyl heat transfer clothing?

PU (polyurethane) heat transfer vinyl is a high-performance material made from polyurethane—a polymer known for its excellent elasticity, durability, and flexibility.

Chemical Composition

Polyurethane is a versatile polymer produced by the reaction of diisocyanates with polyols. The resulting material can be engineered to possess flexibility, durability, and resistance to abrasion, chemical corrosion, and weathering. It is these chemical properties that give PU vinyl heat transfer its superior performance.

Key Characteristics

Property	PU HTV
Thickness	~0.09–0.10 mm (90–100 microns)
Feel	Soft, matte finish
Elasticity	Excellent — >95% rebound
Stretch	Highly flexible and stretchable
Adhesive layer	Translucent with re-adhesive function
Wash durability	50+ washes
Heat resistance	Stable up to 160°C
Cost	Higher (approx. 30% more than PVC)
Eco-friendliness	PVC-free, recyclable options available

Detailed Advantages of PU Heat Transfer Vinyl Rolls

Soft Touch

PU heat transfer vinyl for clothing is thinner and softer than PVC. With a thickness of approximately 90-100 microns, it has a soft, lightweight feel and conforms naturally to the fabric. Therefore, it is ideal for close-fitting garments such as everyday T-shirts, children's wear, and sportswear.

Excellent Elasticity and Resilience

PU material has exceptional elasticity, with a resilience rate exceeding 95%. This means the pattern can stretch with the fabric and return to its original shape after exercise without cracking or deforming. This is crucial for sportswear and performance clothing—the pattern moves with the athlete, rather than hindering their movement.

Superior Washability

PU heat transfer film is known for its excellent resistance to fading, peeling, and cracking. When used at the appropriate temperature, PU HTV Vinyl can withstand at least 50 washes. It can withstand rubbing, hand washing, and machine washing without fading. Independent testing shows that our PU heat transfer vinyl retains over 90% of its color intensity after 50 industrial washing cycles.

An Eco-Friendly Choice

PU materials are available in PVC-free formulations, avoiding the risk of releasing toxic chlorine gas during cutting or application. This makes PU a safer choice for children's clothing and laser cutting machines. Furthermore, PU waste is easier to process in industrial recycling systems.

Heat Peel-Off Process

PU heat transfer vinyl typically uses a heat peel-off process, which is faster and more efficient. The carrier film can be peeled off immediately after heat pressing, saving valuable production time.

Excellent Opacity

PU HTV vinyl offers excellent opacity on dark fabrics. The high pigment content ensures that even vibrant colors appear vivid against black or navy blue backgrounds.

Best Applications for PU HTV

Application	Why PU Works
Sportswear & performance wear	Stretches with the body, excellent rebound, breathable
Everyday T-shirts and apparel	Soft hand feel, comfortable against skin, durable
Children's clothing	PVC-free options available, skin-safe, no toxic risks
Detailed designs	Thin material allows precise cutting and weeding
High-end retail products	Premium look and feel, matte finish
Athletic team uniforms	Withstands frequent washing and intense physical activity
Yoga and activewear	Moves with the body, does not crack at stress points
Workwear and corporate apparel	Professional appearance, long-lasting

What is PVC heat transfer vinyl?

PVC (polyvinyl chloride) heat transfer vinyl is a traditional material made from polyvinyl chloride—a rigid, affordable plastic widely used in the advertising market.

Chemical Composition

PVC is a thermoplastic polymer polymerized from vinyl chloride monomers. It is one of the world's most produced plastics. In heat transfer vinyl for shirts applications, PVC is plasticized to give it sufficient flexibility for garment decoration.

Key Characteristics

Property	PVC HTV
Thickness	~0.13–0.18 mm (130–180 microns)
Feel	Thicker, more rigid
Elasticity	Limited — less flexible
Stretch	Less stretchable than PU
Adhesive layer	Frosted/foggy, no re-adhesive function
Wash durability	Moderate (can crack under repeated stress)
Heat resistance	Stable up to 140°C
Cost	Lower (approx. 30% less than PU)
Eco-friendliness	Contains chlorine, recycling is limited

Detailed Advantages of PVC Heat Transfer Vinyl Rolls

Lower Cost

PVC is significantly cheaper than PU—typically 30% cheaper or more. For large-volume orders on a tight budget, these cost savings are considerable. For producing 10,000 garments, the savings are substantial.

Easier for Beginners

Because PVC is thicker and stiffer, it is easier to handle in certain situations. It maintains its shape well during cutting and descaling. For large, simple designs, and for beginners, PVC HTV vinyl is easier to work with.

Ample Supply

PVC HTV vinyl accounts for approximately 40% of the global heat transfer film market. It is the most common type of iron-on-heat transfer vinyl found in craft shops and online marketplaces. This wide availability means that end-users have more choices in colors and finishes.

Suitable for Simple, Eye-Catching Designs

PVC is perfectly adequate for large lettering, basic shapes, and striking patterns. For designs that require attention to detail, the thickness can actually be an advantage.

Detailed Limitations of PVC Heat Transfer T-Shirt Vinyl

Thicker, Less Comfortable to the Touch

PVC is approximately 130-180 micrometers thick, much thicker than PU. This means that when worn in clothing, PVC feels heavier and less comfortable to the touch.

Poor Flexibility

Due to its thickness, PVC is less flexible and doesn't feel as soft as PU. It doesn't stretch naturally with the fabric. On elastic fabrics, PVC patterns tend to remain stiff, while the fabric stretches.

Prone to Cracking

PVC is prone to cracking under repeated stress (stretching, washing, wearing). The rigidity of this material makes it less durable than PU. This is especially noticeable in clothing that is frequently stretched, such as sportswear.

Application Issues

Using PVC heat transfer vinyl often leads to application problems. This material is not very sensitive to changes in temperature and pressure. It requires more precise control.

Environmental Issues

Polyvinyl chloride (PVC) contains chlorine and requires the addition of plasticizers to achieve flexibility. These plasticizers leach out over time. Furthermore, PVC is difficult to recycle and releases toxic chemicals when burned or incinerated.

Best Applications for PVC HTV

Application	Why PVC Works
Simple, large lettering	Easy to cut and weed
Budget-conscious projects	30% lower cost than PU
One-off or short-term use	Adequate durability for limited wear
Craft projects and beginners	Forgiving handling characteristics
Bulk production with tight margins	Cost-effective at scale
Promotional items	Low cost for giveaways
Costumes and themed events	Short-term use, budget friendly

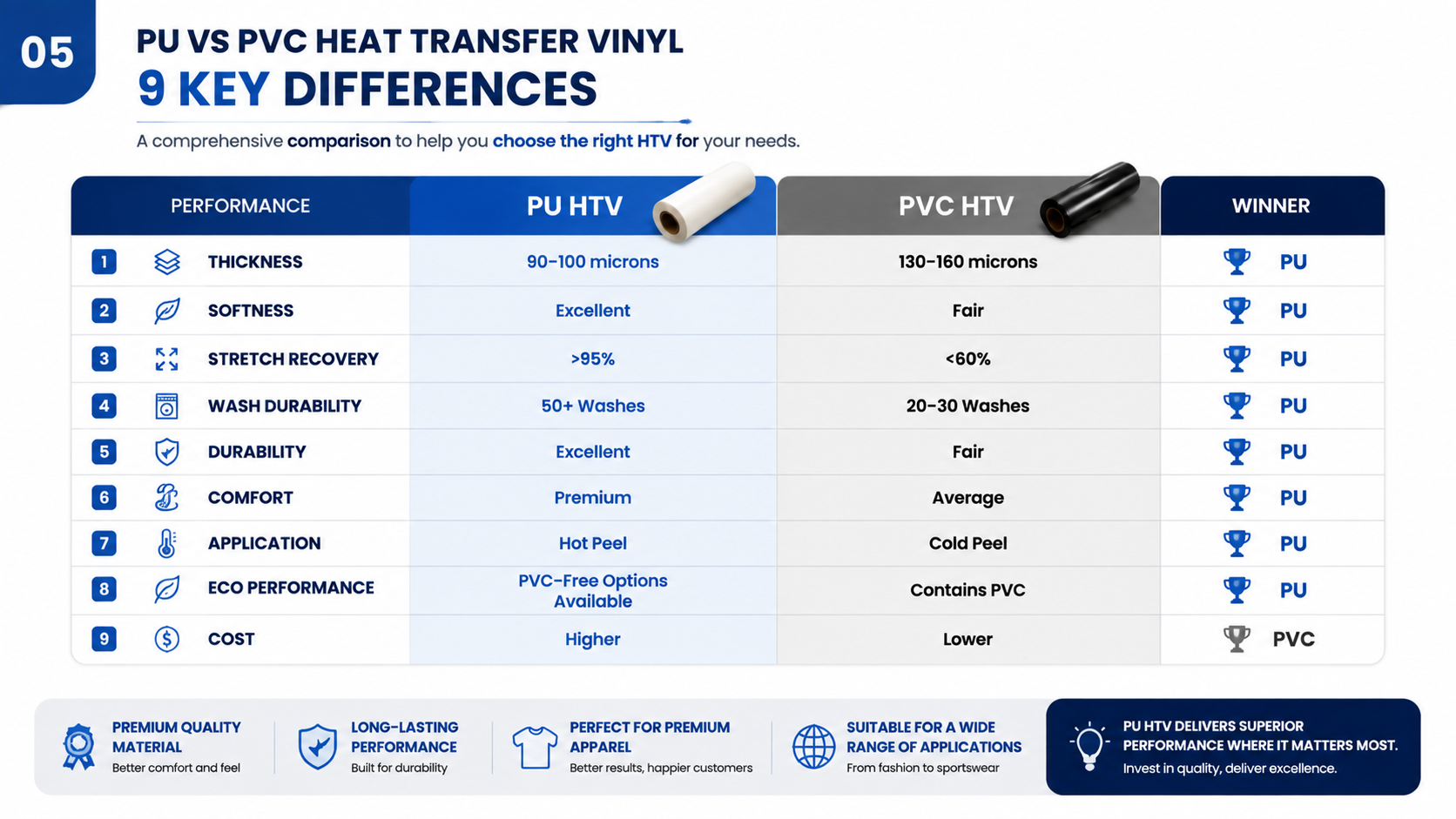

9 Key Differences Between PU and PVC Heat Transfer Vinyl

1.Thickness

Thickness	PU:0.09–0.10 mm (90–100 microns)	PVC: 0.13–0.18 mm (130–180 microns)

PU is approximately 40–50% thinner than PVC. This directly impacts comfort, flexibility, and the overall feel of the finished garment.

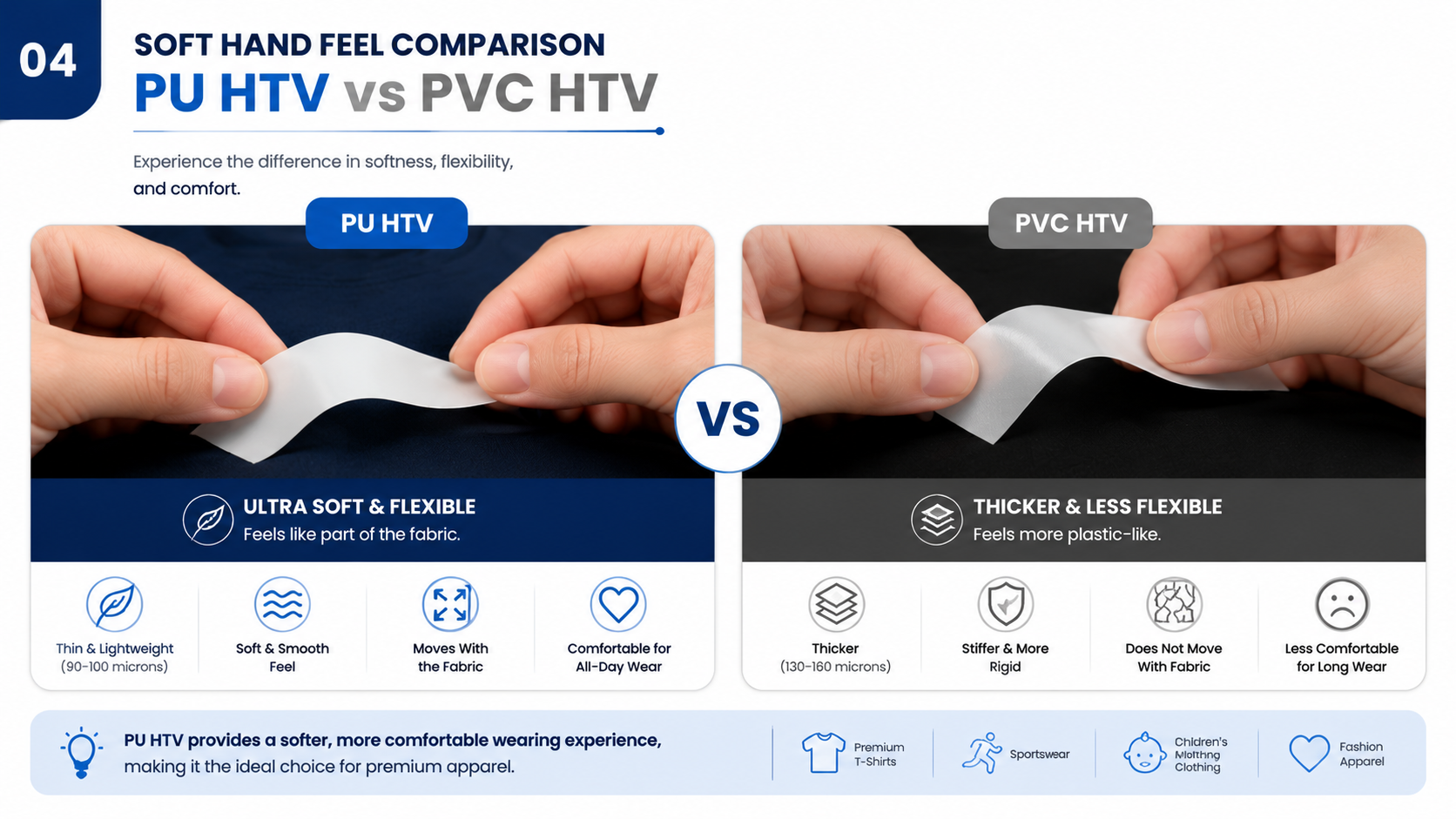

2.Hand Feel

PU: Soft and matte, feels like part of the fabric. The pattern stretches naturally with the garment, almost imperceptible.

PVC: Thicker and stiffer, with a noticeable plastic feel. The pattern is on the surface of the fabric, not integrated. The pattern is clearly visible when touching the garment.

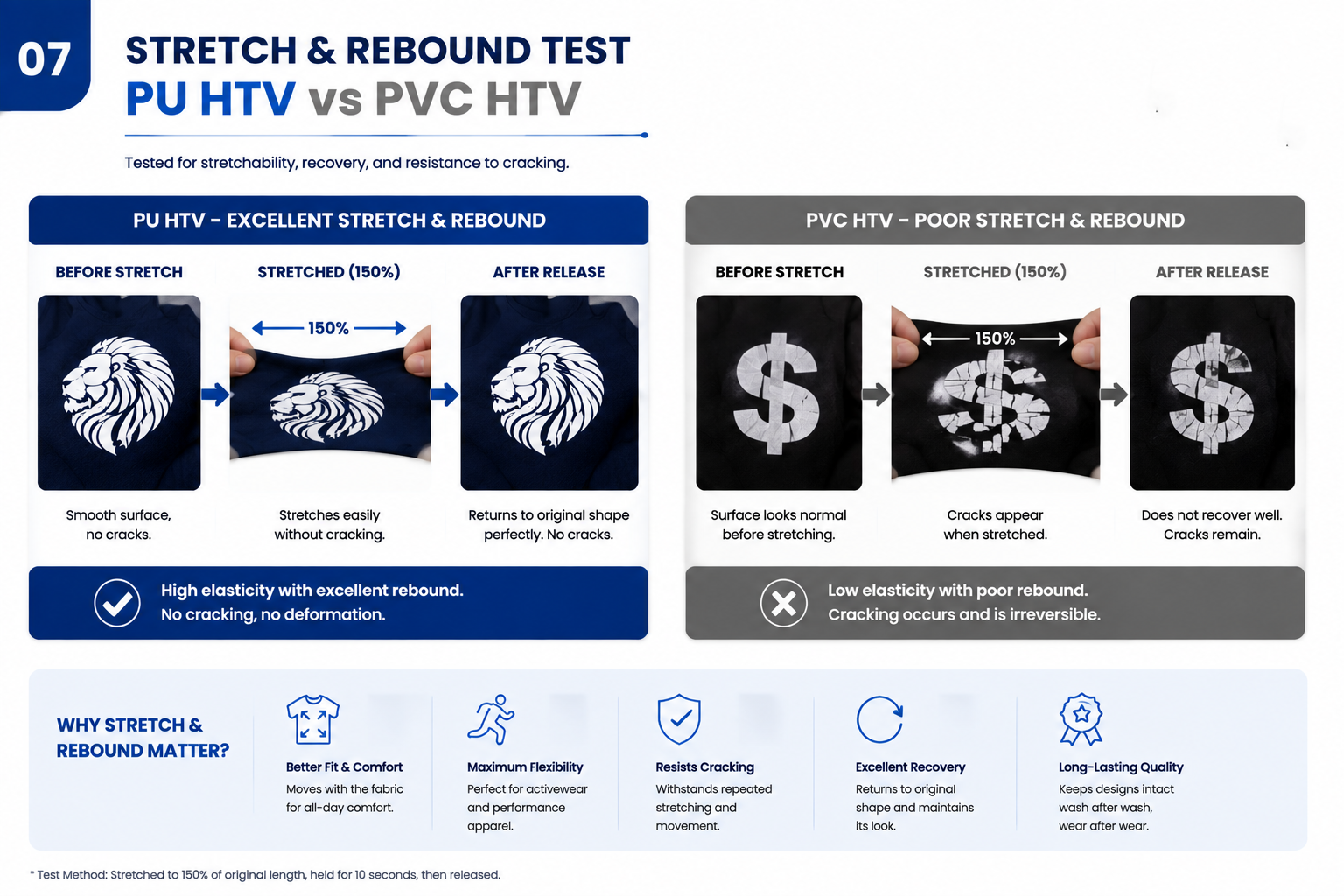

3.Elasticity and Stretch

PU: High elasticity, with excellent stretch and resilience (>95%). Ideal for sportswear and stretch fabrics. The pattern stretches along with the fabric when stretched.

PVC: Limited stretch. The material cannot effectively return to its original shape, and long-term use may lead to deformation or cracking.

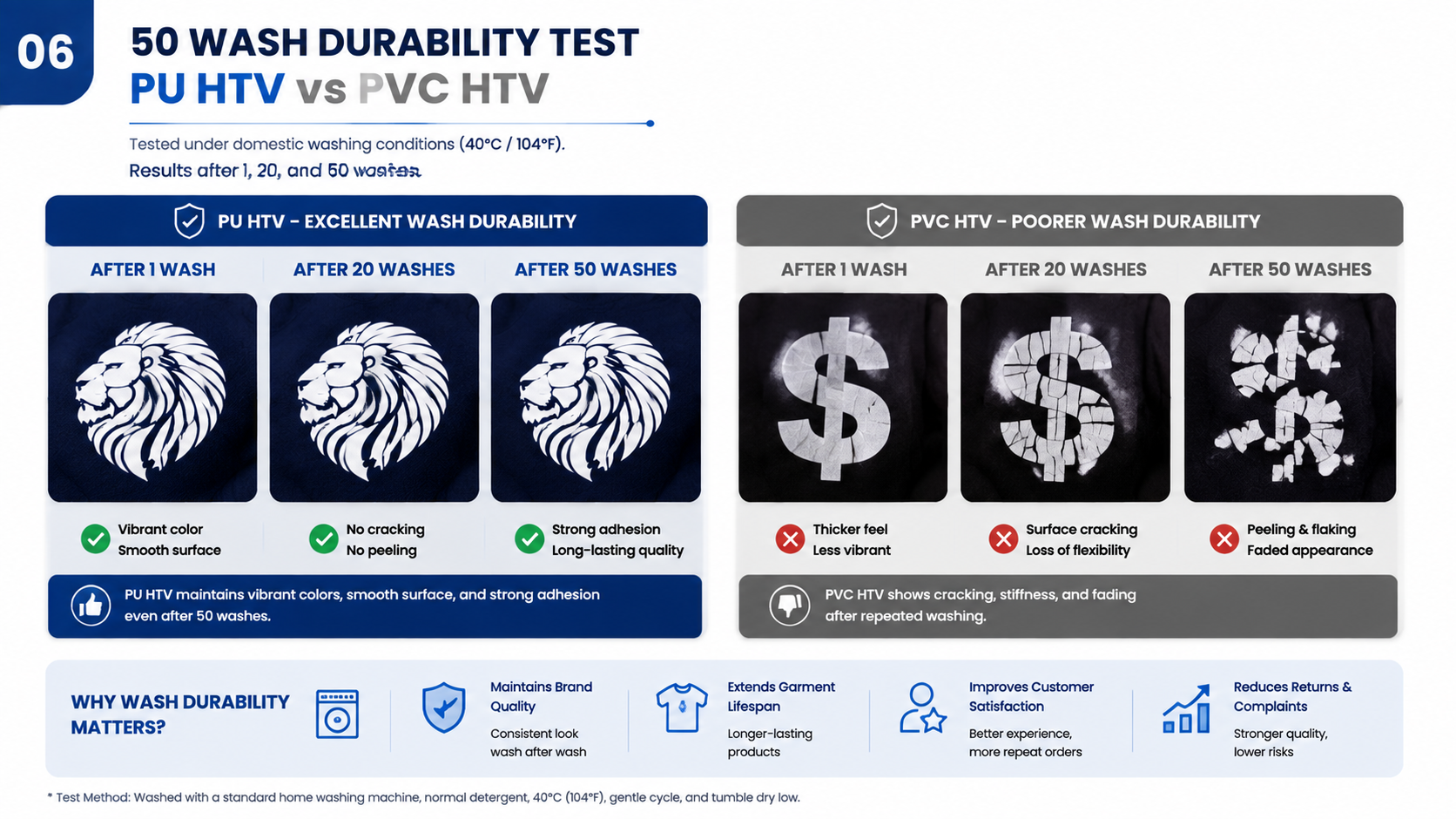

4.Washability

PU: Resistant to fading, peeling, and cracking. With proper use, it can withstand more than 50 washes. Independent testing confirms that after 50 industrial washes, the color retention rate is still above 90%.

PVC: May crack under repeated stress and washing. Poor long-term durability. Wear and tear typically occurs after 20-30 washes.

5.Adhesive Layer

PU: Semi-transparent, with reusable adhesive. This makes repositioning easier during application. If misplaced, the pattern can be adjusted before heat pressing.

PVC: Frosted/matte appearance, not reusable adhesive. Once applied, adjustments are more difficult. Accurate positioning is required on the first attempt.

6.Application Method

PU: Typically heat-peeled – faster and more efficient. The backing paper can be peeled off immediately after heat pressing.

PVC: Typically requires cold peeling or more stringent temperature control. The material must cool before peeling, increasing production time.

7.Temperature Resistance

PU: Maximum temperature resistance 160°C. Greater tolerance to temperature fluctuations.

PVC: Maximum temperature resistance 140°C. More prone to charring or melting at higher temperatures.

8.Environmental Impact

PU: PVC-free and recyclable options are available. More suitable for children's clothing. Does not release toxic gases.

PVC: Contains chlorine, which releases toxic gases when burned. Plasticizers may leach out. Recycling options are limited.

9.Cost

	PU	PVC
Relative cost	Higher	Lower (30% less)
Best for	Quality-focused, professional applications	Budget-conscious, high-volume production

Quick Comparison Table

Feature	PU HTV	PVC HTV
Thickness	0.09–0.10 mm	0.13–0.18 mm
Feel	Soft, matte	Thicker, rigid
Elasticity	Excellent (>95% rebound)	Limited
Wash durability	50+ washes	20–30 washes
Adhesive	Translucent, re-adhesive	Frosted, no re-adhesive
Application	Hot peel (faster)	Cold peel (slower)
Temperature tolerance	Up to 160°C	Up to 140°C
Environmental	PVC-free, recyclable	Contains chlorine
Cost	Higher	~30% lower
Best for	Sportswear, apparel, quality products	Budget projects, simple designs

Customer Testimonials

"I used to use PVC heat transfer vinyl, but now I've switched to Koala® Paper's PU heat transfer vinyl for my sportswear line. The difference in quality is night and day. My customers love the soft touch, and I haven't received a single complaint about cracking."

—Mark, US Custom Sportswear Company



"Koala® Paper's PU HTV vinyl removes glue exceptionally well, leaving no flaws after each heat press. I tried other brands, but ultimately chose Koala® Paper."

—Sarah, UK Etsy Seller



"Initially, I was skeptical about the high price of PU, but after witnessing its durability firsthand, I'll never use PVC again. The 50+ wash guarantee truly lives up to its name."

—David, Australian Printing Shop Owner

Final Conclusion

PU heat transfer vinyl for t-shirts is a premium choice. It's thinner, softer, more stretchy, and more durable than PVC. It blends seamlessly with the garment, stretches with the fabric, and is durable enough to withstand over 50 washes. If you're making products to sell, PU is a professional choice.

PVC HTV vinyl is an economical option. It's cheaper—about 30% less than PU. It's suitable for simple designs, larger lettering, and projects where cost is a primary consideration. However, it's thicker, slightly less comfortable, and more prone to cracking over time.
